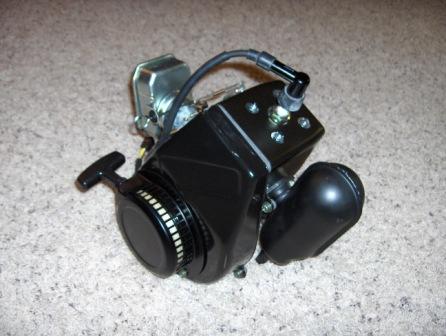

Kitty Cat Engine


Kitty Cat Engine Parts

Mychron Light Tach

Spark Plugs


Kitty Cat Suzuki Engine Parts


  • Arctic Cat is completely sold out of these engines, but parts are still available.  If you need an engine, the best option is to have your existing engine refreshed (rebuilt).  The engine will mechanically come back much better than when it came from the factory originally.  And that's a fact.

Recoil (1972 to 1997)

Now available again! As of 2/14/19 Arctic Cat has temporarily discontinued selling these recoils. We are in the process of working out a deal to have these available again, but haven't received confirmation if Arctic Cat can even get these recoils ever again.
(List is $129.99)
N/A 3002-493

Recoil (1998 to 1999)

(List is $163.95)



Recoil Pawl (Ratchet) Set, '72-'97

 (List is $24.95)



Recoil Pawl (Ratchet) Set, '98-'99

 (List is $24.95)



Recoil Drive Plate

 (List is $13.99)



KC Crank Pin

(Retail $28.99)



Piston & Ring Assy, Standard

(Retail $120.95)



Piston & Ring Assy, +.020"

(Retail $116.99)



Piston & Ring Assy, +.040"

(Retail $113.95)



Ring Set, Standard

(Retail $74.95)



Ring Set, +.020"

(Retail $72.95)



Ring Set, +.040"

(Retail $63.95)



Slit Connecting Rod (w/lubrication holes)

(Retail $140.95)



Head Gasket

(Retail $21.95)



Base Gasket

Limited Quantity Available



Exhaust Gasket

(Retail $9.99)



Carburetor Gasket

(Retail $5.95)



Gear Case Gasket

 (List is $13.95)



Crank Oil Seal, Right PTO Side

 (List is $11.28)



Crank Oil Seal, Left Side

 (List is $13.34)



Woodruff Flywheel Key

 (List is $3.69)



Needle and Seat, 2.0

 (List is $37.45)



Kitty Cat Ignition Key

 (List is $6.13)



Fuel Line - 3/16" (by the foot)

 (List is $0.95 per foot)

$0.75 / foot


Fuel Line - 1/4" (by the foot)

 (List is $1.03 per foot)

$0.95 / foot


Kitty Cat Standard Race Spark Plug

 (List is $5.95)



Kitty Cat Iridium Race Spark Plug

 (List is $17.95)



Crank half, RH (Mag. side) for Suzuki              $149.95                         3002-481

 (No Longer Available)

Crank half, LH (Clutch side) for Suzuki            $149.95                         3004-046

 (List is $199.99 - Only 1 in stock - Arctic Cat discontinued this part permanently)

Tether Kill Switch                                             $48.00                         0630-077

 (List is $53.95)

Handlebar Kill Switch                                     $39.99                         0609-007

 (List is $58.95 - Only 1 in stock - Arctic Cat discontinued this part permanently)

NGK Spark Plug Cap                                      $5.99                         3003-175

 (List is $6.95)


Click Picture to Enlarge


Kitty Cat Electronic Ignition (All points engines)

  • Replaces points and condenser on all model year Kitty Cats. Points and condensor was used from 1971 to 1981.
  • This only replaced the points/condenser, so you must have a good coil. Primary should be 5500 ohms (+/- 20%).
  • This electronic ignition increases engine power by roughly 1/3 horsepower.
  • This kit contains instructions and parts that are used to install in either the silver Kawasaki or black Suzuki engines.
  • The T5A/T5B can be determined by the engine decal, or the T5A has a grey primary coil and the T5B has a red primary coil.
  • Click here for installation instructions. Suzuki or Kawasaki.
  • If you need to test the module the ohms should read 3000 to 3100 +/-. Use the left side (black stripe) as the positive. Otherwise you'll get numbers either about 1200 or 5500.
  • NOTICE: From time to time we have found ONLY the Kawasaki "B" motor to have trouble using this module. Most of the time they work, but about 10% of the B motors we've installed this kit in will burn out the chip. We have then reinstalled the points and condensor.

Electronic Ignition (Kawi and Suzuki)                $75.00                 T1-3706

Click Picture to Enlarge


Suzuki Gasket & Seal Kit (60cc)

  • This kit is assembled by Olson Brothers Distributing and includes all the correct size seals and gaskets. The only gasket not included in this kit is the gear box gasket, which hardly ever becomes damaged. This gasket can be order separately if needed.

  • We try to keep these in stock at all times.

  • Retail cost of these gaskets and seals individually is $77.79.

Suzuki Gasket & Seal Kit (60cc)                       $39.95                 SK02-01797

Click Picture to Enlarge


Kawasaki Gasket & Seal Kit (60cc)

  • The Kawasaki kit was made specifically for Olson Brothers Distributing and includes the correct size seals and the correct gaskets.  All other Winderosa Kawasaki gasket kits have the wrong exhaust gasket and only one incorrect carb gasket.  We add another carb gasket to ensure a good seal where the rubber O-ring is located and includes the correct round exhaust gasket instead of the incorrect rectangular gasket.

  • This kit does not include the gear box gasket as this gasket rarely becomes damaged and the OEM gaskets are no longer available.
  • Other suppliers sell the Winderosa Kawi gasket kit, but no one else has the correct one. Although the part numbers are the same, only ours has the correct size seals and gaskets.

  • We try to keep these in stock at all times.

Kawasaki Gasket & Seal Kit (60cc)                       $35.00                 SK02-01798

Click Picture to Enlarge



KOSO Mini Tach

  • KOSO's mini RPM tach is a surface mountable Tachometer that is accurate to 15,000 rpms and features a resetable maximum RPM recall. This multifunction meter is programable to three different firing patterns to accomodate two and four-stroke engines.

  • This tach is PERFECT for racing as it only has a 0.5 second delay between reading and display. Most mini tachs have up to five second delay.

  • This tach retails for $89.95, but is currently being offered by Olson brothers for $79.95.

  • Measures 33.7mm (1.33 in.) H x 61.5mm (2.42 in.) W x 15.6mm (.61 in.) D

KOSO Mini RPM Tach                                           $59.95                 A02-0001

Click Picture to Enlarge


Spark Plugs

  • Standard and Iridium NGK spark plugs for Kitty Cat and all 120cc sleds. Order on-line or call 651-395-2296.

  • Iridium plugs last longer and have more spark surface for better fuel ignition.

Standard Spark Plugs                  $2.95
Iridium Race Spark Plugs             $9.25

Click Picture to Enlarge
