Fuel System



18mm Mikuni Carburetor (Kitty)

Stock OEM Carburetor (Suzuki and Kawi) (Kitty)

Velocity Stack (120s)

Fuel Pump & Fuel Pump Kit (Kitty)

Kitty Cat Carb. Parts (Kitty)

Gas Tank Bracket (Kitty)

Crank Case Gas-line Adapter (Kitty)

KC Carb Parts

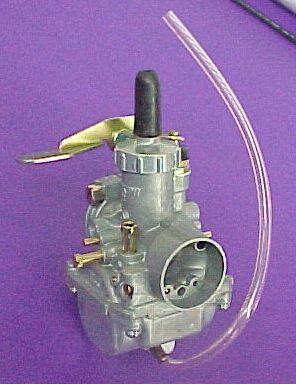

18mm Mikuni Carburetor (Kitty Cat)

  • Outstanding performance and durability as the Mikuni name has earned!!!
  • Excellent fuel control with easy adjustments for fine tuning.
  • At almost a 10% discount, the CARB KIT comes with everything listed below plus installation instructions.
  • Specifically used on Kitty Cats for racing as these carburetors are touchy and require detailed setup.  If you're not racing I strongly recommend purchasing the OEM replacement carb below.
  • Note:  We only have three carb flanges left and therefore this complete kit is only available until those three are sold out. Individual 18mm carbs may be special ordered without flange and cable...call for in-stock information
  • WARNING: The 18mm carburetor alone does not directly mount to the cylinder. It requires a mounting flange and therefore you'd need the entire kit unless this is just a carb replacement. Please don't order the 18mm carb alone if you don't have have a mounting flange already on your engine.



18mm Mikuni Carburetor                        $79.95                     SK08-04010

18mm Carb Flange  (Out of Stock)             $44.95                     SM08-04015

18mm Throttle Cable  (Retail is $62.95)    $24.95                     SM09-03101

    Temporarily Out of Stock

Complete 18mm Carb Kit                 $179.95                     SM08-04001

Includes: 18mm Carburetor, Carb Adapter (mounts carb to KC engine), and 18mm Throttle Cable.
     Temporarily Out Of Stock - Will Be Available Spring 2019.

Genuine Mikuni Fuel Pump (Square, 1 outlet)    $33.29                     SM08-07151

Aftermarket Mikuni Fuel Pump (Square, 1 outlet)    $16.95               SM08-07153

Fuel Pump Kit                                         $39.95                     SM08-07101
  • Includes: Fuel Pump, Barb Adapter, Gas Line, T-fittings, and Instructions,
  • Click here to see installation instructions.

Click Picture to Enlarge

Barb Adapter (crank case)                       $1.99                      SK08-00231

Jetting (#65 recommended)                     $5.00

Click Picture to Enlarge



Stock OEM Carburetor (Suzuki and Kawi) (Kitty Cat) UNAVAILABLE UNTIL FEBRUARY 28

  • Temporarily Backordered Limited number of carburetors are still available.  Arctic Cat is still providing these carburetors, but as soon as they see a drop in sales they may quite offering them.
  • New OEM carburetor for either Suzuki or Kawi.
  • This carburetor replaces and resolves the continued problems that everyone experiences with the OEM Kawi engines.
  • The OEM carburetor for the Kawasaki is $5 more than the Suzuki because of the modifications required for the carb to fit the Kawasaki engine.
Suzuki OEM Mikuni Carburetor                              $209.95                 3004-036
MSRP is $232.99

Kawasaki Mikuni Upgrade Carburetor (Comes with 2 carb gaskets)             $219.95               3004-036k
Exclusive through OBDi

Click Picture to Enlarge

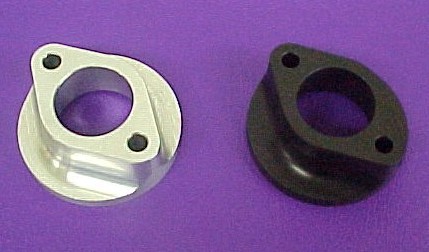

Velocity Stack (120)

  • For use on stock 120cc carbs to increase airflow.



  • Velocity stacks for both Polaris and Arctic Cat.

  • Durable aluminum.

  • Specially designed and built to fit throat perfectly.

  • COMING Fall 2021

Velocity Stack, Arctic Cat                   $29.95                 T1-1519

Velocity Stack, Pol (w/studs)             $34.95                 T1-1518

Click Picture to Enlarge

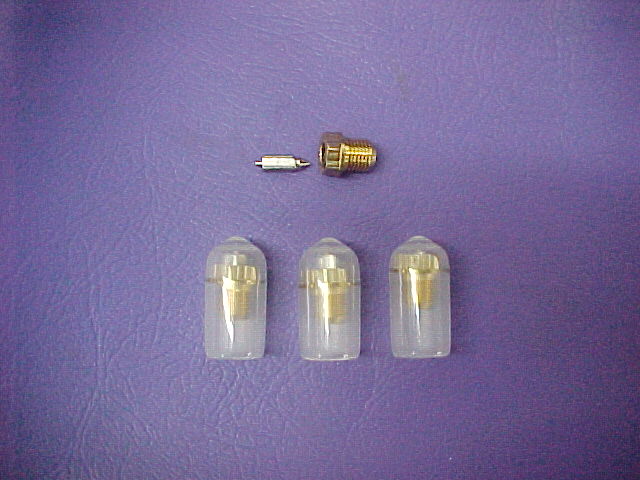

Carburetor Parts (Kitty)

  • Use on Kitty Cats to increase fuel flow and tune performance. (NOTE: Mikuni Carbs Only...Not For Use With Kakaki Carb On Kawasaki Engines)
  • The OEM carburetor comes with a 1.5 needle & seat (N&S), which is the device that controls the fuel flow rate entering the carburetor.  The 1.5 size is fine, as long as you don't bypass the governor.  As soon as you bypass the governor and the RPMs increase, the demand for fuel is greater and the 1.5 N&S is not large enough to meet that demand.  Therefore, we offer the 2.0 N&S as an upgrade to ensure the fuel flow is correct.
  • The Pilot Jet controls the rate of air allowed to enter the carburetor and mix with the fuel.  The #35 pilot jet was used from 1977 to 1992, then the factory changed to using a #40 pilot jet. from 1993 until 1999.  Either will work fine for your Kitty Cat, and some customers split the difference with a #37.5.

  • These main jets are used specifically on the Kitty Cat and controls the fuel rate allowed to move from the carb bowl into the carburetor nozzle and then onto the throat.  The leaner the engine runs to a certain point, the better engine performance.  In other words, the closer the engine is to burning down because it's too lean, the better the engine performs.  What's too lean?  That's the question for every snowmobile.  It's up to you to determine that.  A 72.5 main jet was OEM, except for 1977 where it was a 77.5 and TOO rich.  Most people change the main jet to a #70, which seem to be a very good option.  Some racers will use a 67.5 main jet, but they risk a melt-down and are very careful to take into consideration the temperatures.  The colder the temperature, the less dense the air is and the more your engine runs lean.  Please email us if you have any questions about this topic.  (OBDi does not assume any responsibility or liability for damages done by changing the OEM configurations.)

Kitty Cat 2.0 Needle & Seat                $24.95                    SK08-NS200
MSRP is $37.95

Pilot Jet                                            $7.50

Main Jets                                          $5.00

Carb Linkage Extension Spring               $9.95                    3002-466

Carb Linkage Rod               $4.95                    3002-515

Float Bowl Gasket               $4.95                    6505-286    DISCONTINUED

Mikuni Emulsion Tube (Discontinued)  $24.95                    6505-285         DISCONTINUED

Mikuni Nozzle (Discontinued)   $48.00                    6505-284         DISCONTINUED

Click Picture to Enlarge



Gas Tank Products (Kitty)

  • All products below are direct from Arctic Cat.



Gas Tank Bracket (N/A)

Arctic Cat Discountinued

$0

0716-457

Gas Tank, Plastic (no cap, grommet or shut-off)
MSRP is $58.95
$59.95

0670-065

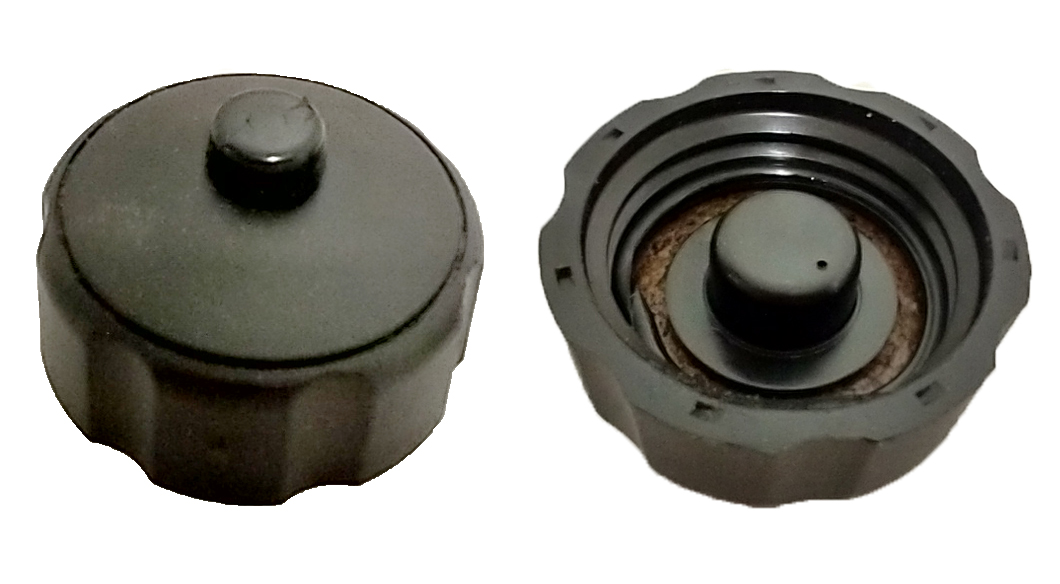

Gas Tank Cap (1978-1999)

This gas cap was used from 1978 to 1999 and is slightly taller than 1" and has a breather button on the top. Replaces 0670-066 and 0302-091.

MSRP is $16.16
$14.95

0670-514

Click Picture to Enlarge

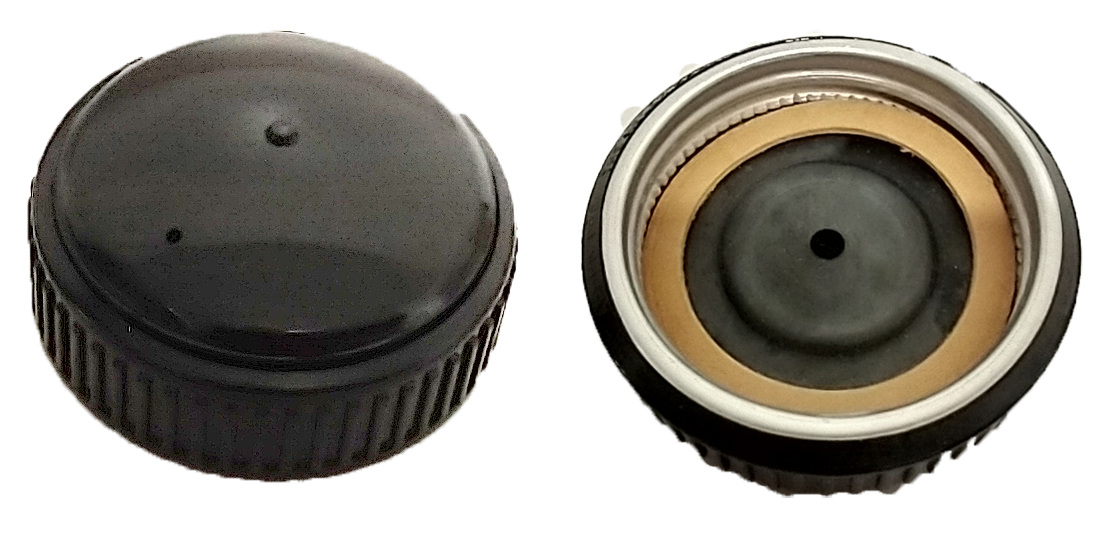

Gas Tank Cap (1972-1977)

This gas cap was used on plastic gas tanks from 1973 to 1977 and is slightly less than 1" tall.

MSRP is $15.43
$14.95

0115-203

Click Picture to Enlarge

Fuel Shut-Off/Filter for Plastic Tank- '73 to '99 (rubber grommet sold separately)

Backordered by Arctic Cat. We recommend choosing A09-0041 below.

MSRP is $23.99
$21.95

0302-057

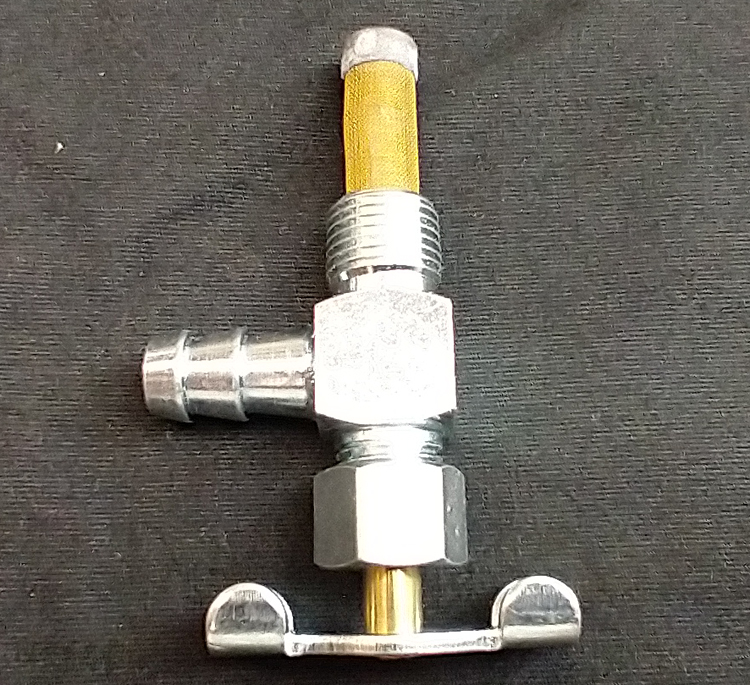

Fuel Shut-Off/Filter - '72&'73 (no rubber grommet, screws into metal tank)

Exclusive Olson Brother part, Arctic Cat has discontinued in about 1990.

MSRP is $23.99
$21.95

2168-000

Rubber Grommet
MSRP is $2.99
$2.79

1670-325

Gas Tank Kit (Includes tank, cap, grommet & fuel shut-off)

Note: OEM fuel shutoffs are backordered from Arctic Cat. Please consider the deluxe gas tank kit below as these are typically in stock.

MSRP is $106.96 (Saves $17.01 off retail)
$89.95

0770-038

Deluxe Gas Tank Kit (Includes tank, cap, and 'Fuel Shutoff Repl Kit w/Filter' below)

This OBDi exclusive gas tank kit come with the OEM gas tank and cap, grommet, and instead of the OEM fuel shutoff / filter we replace that with our 'Fuel Shutoff Replacement Kit w/Filter' that adds a steel elbow that connects into the gas tank through the grommet, a ball valve shutoff, an inline clear filter, and all the gas line that connects them all. This kit saves you $23.47 over the retail valve.

MSRP is $120.42 (Saves $23.47 off retail)
$96.95

0770-038

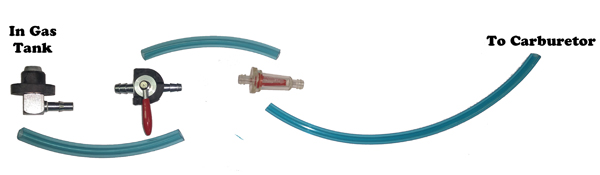

Fuel Shutoff Replacement Kit with Fuel Filter

This kit includes grommet, steel elbow, ball valve shutoff, filter and gas lines.

MSRP is $37.45 (Saves $7.50 off retail)
$29.95

A09-0041

Click Picture to Enlarge

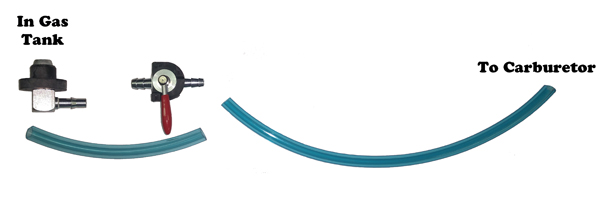

Fuel Shutoff Replacement Kit with NO Filter

This kit includes grommet, steel elbow, ball valve shutoff, and gas lines.

MSRP is $35.46 (Saves $6.55 off retail)
$28.95

A09-0042

Click Picture to Enlarge

Click Picture to Enlarge
